Project Location and Overall Design

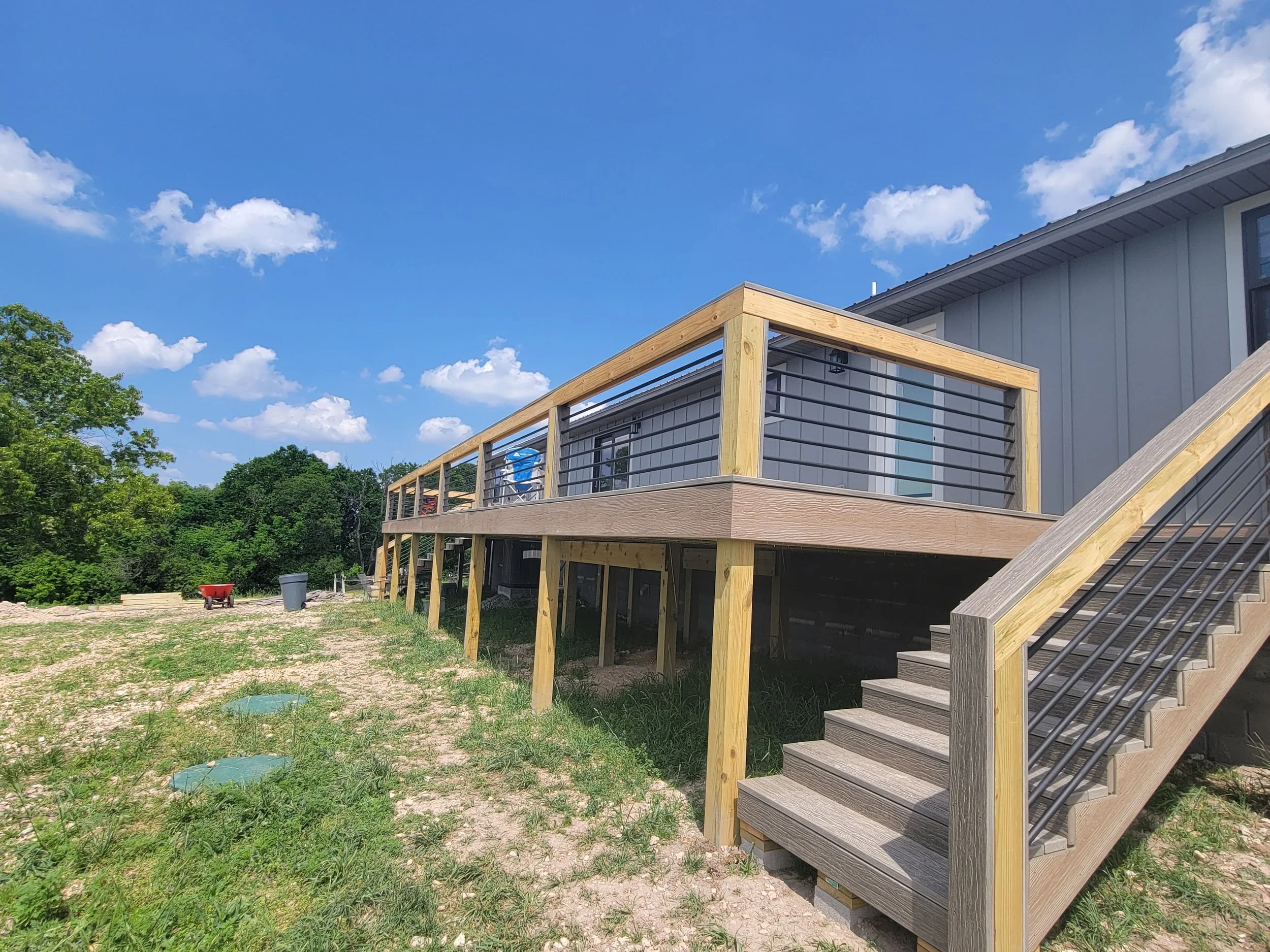

This project sits in a new subdivision just outside Pineville, Missouri, where the homeowner wanted a large, elevated deck designed from day one to carry the future weight of a hot tub. The result is a substantial 12‑by‑78‑foot composite deck, raised one story off the ground, with stairs at both ends. The house did not have a suitable existing porch, so this deck functions as a new outdoor room with built‑in flexibility for future amenities.
Because the deck is visible across much of the rear elevation, the structure was designed to look as solid as it performs. Beefy 6x6 posts, long beam lines, and custom iron railing give the deck a substantial, high‑end presence that matches the scale of the home rather than feeling tacked on.

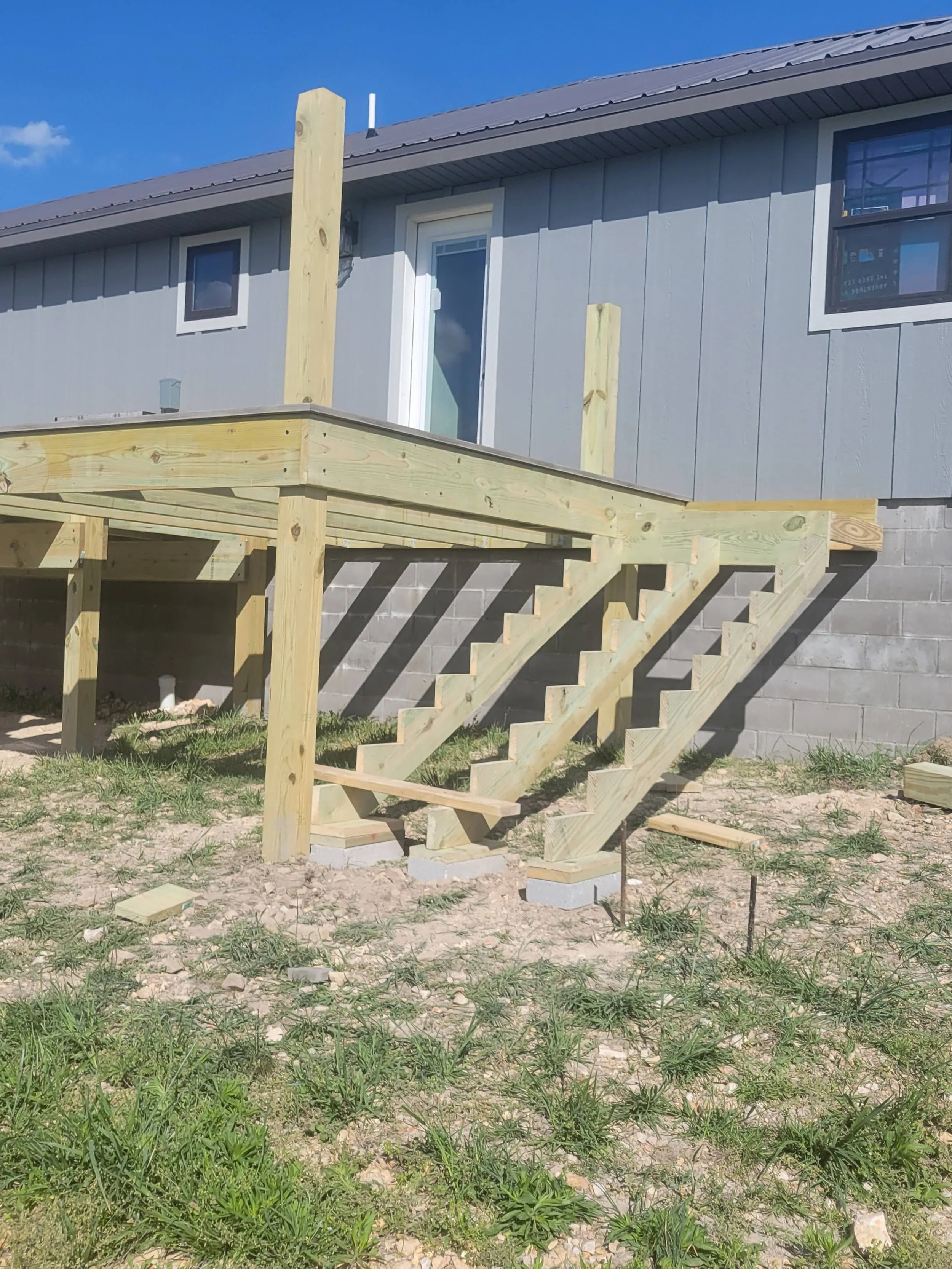

Hot Tub Deck Framing, Joist Layout, and Code Considerations
To support the heavy, concentrated load of a future hot tub, E.L. Marshall Construction “over‑built” the structure on purpose. The framing uses 2x12 joists—larger than what many builders use for a standard deck—along with added beams beneath the primary hot tub area to handle the extra live load safely. Using deeper joists and a tighter deck joist layout for hot tub zones is a widely recommended best practice because a filled spa can easily weigh several thousand pounds.
In addition to the joist sizing, the deck uses 6x6 posts for vertical support, which provides higher capacity and a stiffer feel than smaller posts. This approach helps limit bounce and deflection when people gather or when the hot tub is in use. Proper footing depth, post connections, and beam sizing are all aligned with typical residential deck code requirements for elevated decks, and railings and stairs are framed and attached to meet safety and guard requirements for a one‑story‑high structure.

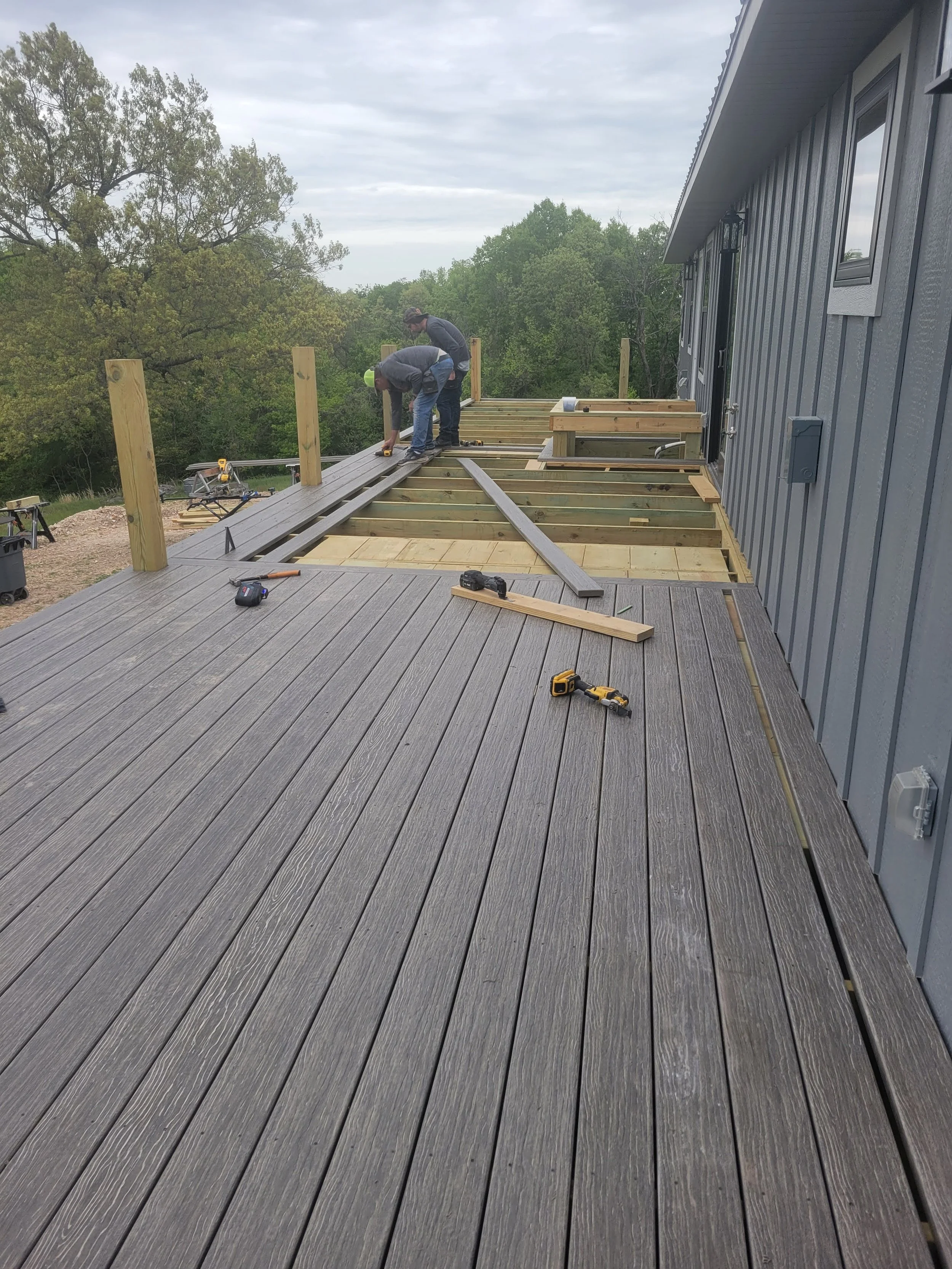

Composite Decking, Railings, and Custom Layout Solutions
For the walking surface, the homeowner chose composite decking rather than traditional wood. Composite decking material is typically a blend of wood fibers and recycled plastics, often with a protective cap that improves resistance to moisture, fading, and staining. Compared to wood, it offers lower maintenance—no regular staining or sealing—and better resistance to rot and insect damage, which is especially helpful on a large deck where upkeep can be time‑consuming.
The railing system combines composite material on top of the rail with vertical iron piping as spindles. This pairing delivers several benefits:
- Strong, slim iron balusters that feel sturdy and open up the view.
- A composite top rail that is comfortable to lean on and resists weathering.
- A clean, modern look that contrasts nicely with the deck boards and house siding.

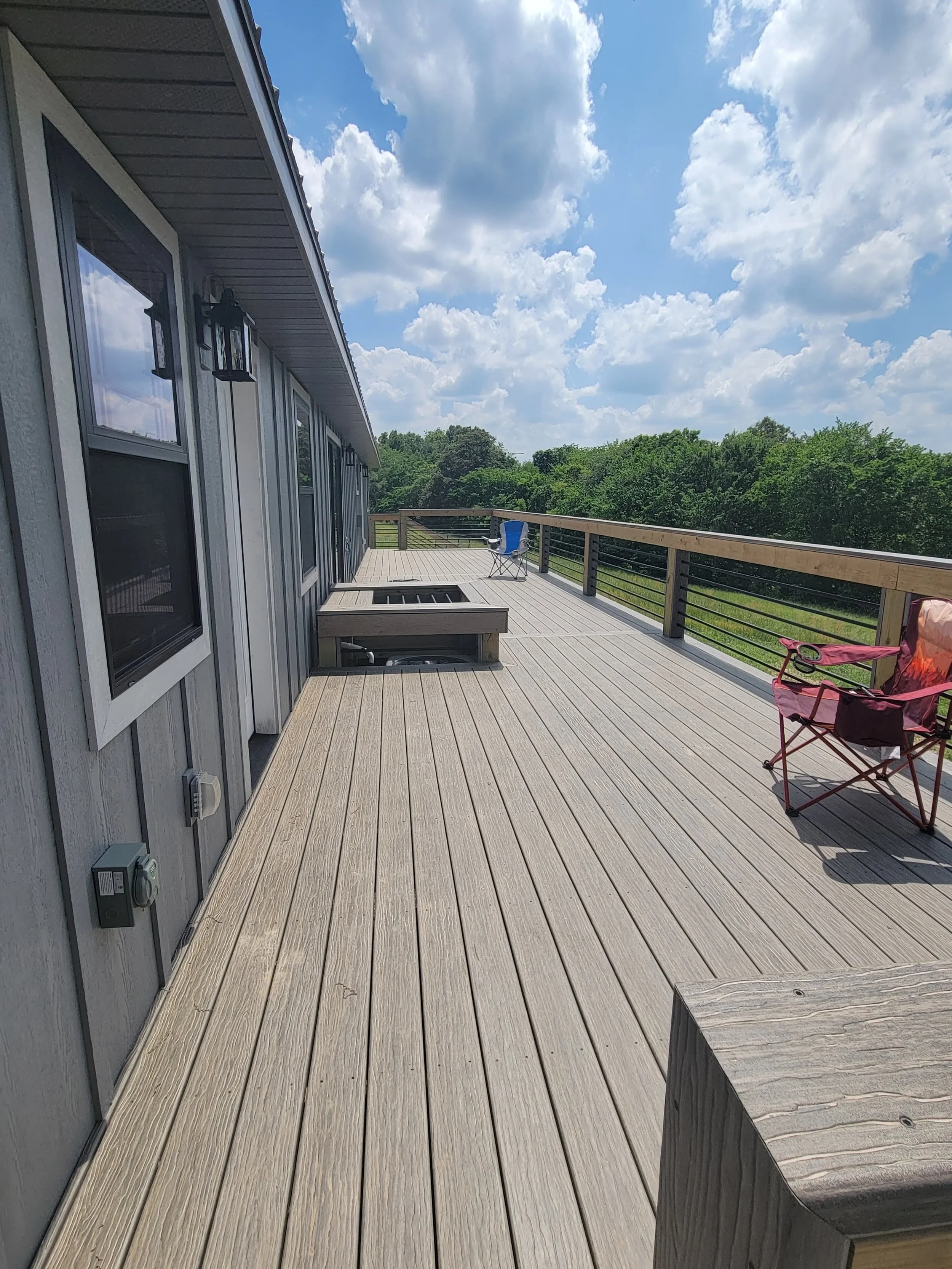

One of the most thoughtful details is how the deck framing addresses an awkwardly located heating and air unit beneath the deck. Instead of leaving an unsafe open hole or crowding the equipment, our crew created a custom open zone that hides the unit behind built‑in bench seating and protective bars. This solution maintains clear future access for service, keeps people from falling into the opening, and turns a “problem spot” into a functional and attractive seating feature.
What the Homeowner Needed and How E.L. Marshall Accomplished It
The homeowner needed:
- A very large, elevated deck to expand usable outdoor space.
- Structure robust enough to support a future hot tub without rebuilding later.
- Low‑maintenance materials to keep the deck looking good long‑term.
- A clean way to integrate an unfortunately placed HVAC unit.
E.L. Marshall Construction delivered by using oversized 2x12 joists, extra beams, and 6x6 posts to create a hot‑tub‑ready deck that feels solid now and is prepared for future upgrades. This deck is intentionally “beefed up” for better lifespan and sturdiness—especially under heavy loads—rather than chasing the lowest upfront cost.
The custom iron railings, composite top caps, and thoughtful bench‑and‑bar solution around the HVAC unit reflect the level of detail and problem‑solving that sets our company apart. Instead of working around obstacles in a way that looks temporary, we design them into the project so the finished space feels cohesive and intentional.
